GREEN Series
Industrial Chargers

Exclusive to FSIP, the GREEN Series Industrial Battery Chargers are high-frequency, fully automatic chargers for use with either lead-acid or lithium batteries. Conveniently configurable via the front panel display or USB type A/B port, they deliver high-energy efficiency. The units are enclosed in a wall-mountable, durable steel case. All units are cUL and CEC certified. The GREEN Series Industrial Battery Chargers provide a solution for your small to mid-size electric vehicle charging needs; charge cycles begin as low as 2-Volts.

Single and Three-Phase Industrial Battery Chargers

Industrial Battery Chargers

Motive Power Solutions

From light duty to heavy duty, lead-acid to lithium-ion, from conventional to fast charging, GREEN Series has the perfect industrial charger for your application.

  • Forklifts
  • Aerial/scissor lift
  • Pallet-jack
  • Ground support equipment
  • Personnel carrier
  • Reach truck
  • Sweeper-Scrubber
  • Mining cars
  • Go-Kart

Single-Phase Industrial Battery Chargers

Terrific solutions for plug and play charging with single-phase input. Maximize equipment uptime with the portable, easy-to-use voltage-specific and current adjustable units. Ideal for rental fleets, short-term rentals, pallet jacks, sweeper-scrubbers, and more. For more information contact sales.

GREEN2

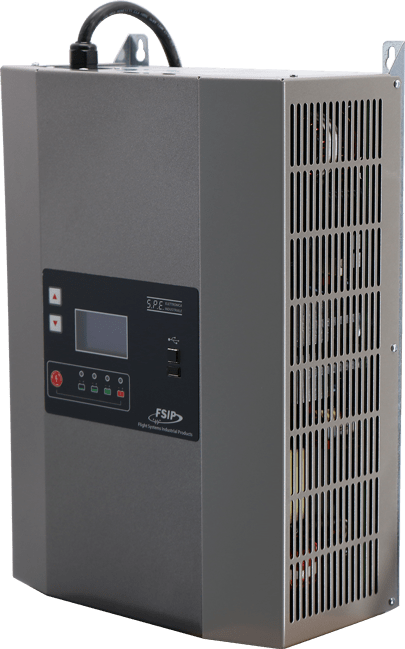

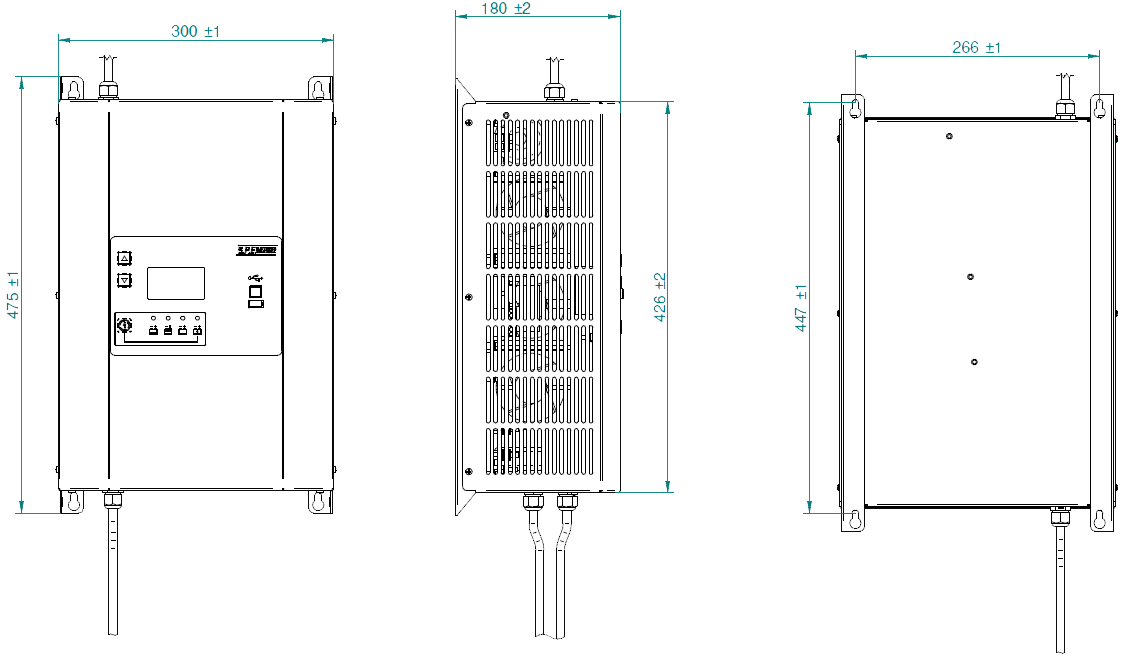

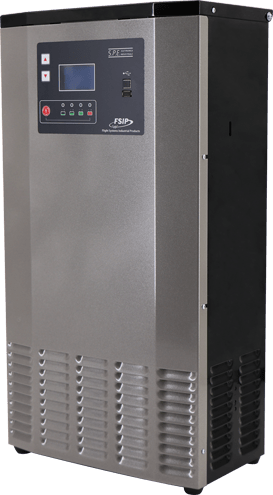

GREEN2 Single-Phase Industrial Battery Charger Technical Drawing GREEN2 Single-Phase Industrial Battery Charger Product Shot
Download Spec Sheet
Model DC Output Voltage DC Output Current Flooded 8-Hour AH Range (C6) Max AC Input Current Input Voltage
GREEN2 DIMs: 11.8” x 7.1” x 18.7” Wt.: 25 lbs.
24-GREEN2-2470 24V 70A 280AH-770AH 25A 110-120VAC, Single-phase
24-GREEN2-3645 36V 45A 230AH-500AH 25A 110-120VAC, Single-phase
24-GREEN2-4840 48V 40A 170AH-440AH 25A 110-120VAC, Single-phase

GREEN4

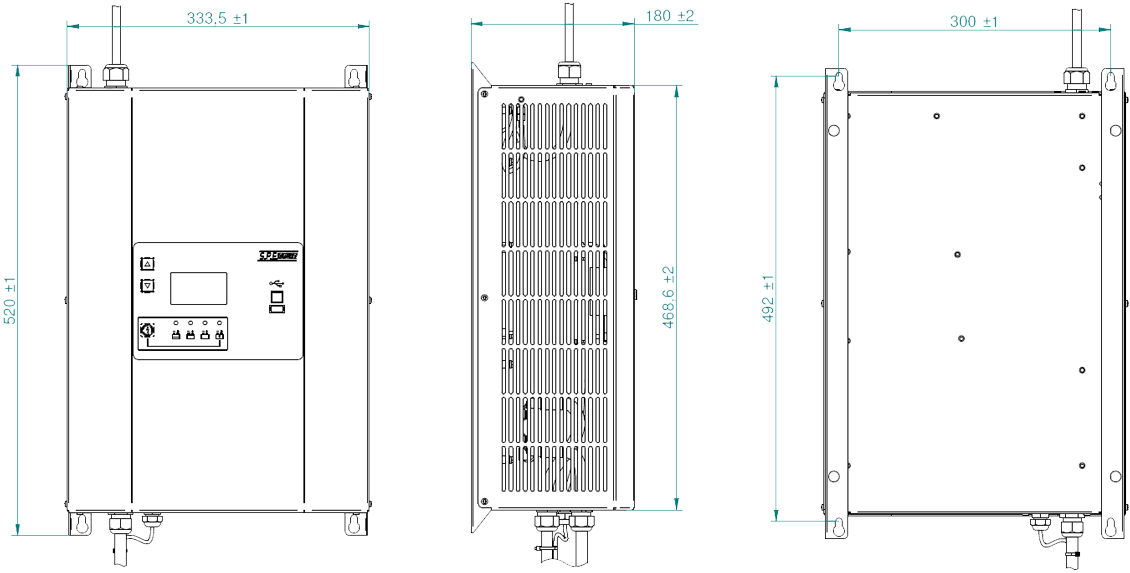

GREEN4 Single-Phase Industrial Battery Charger Technical Drawing GREEN4 Single-Phase Industrial Battery Charger Product Shot
Download Spec Sheet
Model DC Output Voltage DC Output Current Flooded 8-Hour AH Range (C6) Max AC Input Current Input Voltage
GREEN4 DIMs: 13.1” x 7.1” x 20.5” Wt.: 29 lbs.
24-GREEN4-24120 24V 120A 450AH-1320AH 30A 208-240VAC, Single-phase
24-GREEN4-3690 36V 90A 280AH-990AH 30A 208-240VAC, Single-phase
24-GREEN4-4875 48V 75A 280AH-830AH 30A 208-240VAC, Single-phase
24-GREEN4-8040 80V 40A 170AH-440AH 30A 208-240VAC, Single-phase
24-GREEN4-9635 96V 35A 140AH-380AH 30A 208-240VAC, Single-phase

Fully Customizable

Get Exactly What You Need

GREEN Series offers a vast range of configurations, Order to your exact specifications: voltage, charging curve, and connector type. Chargers are preprogrammed (ready to use*) and drop shipped to your location.

  • Charge cycle begins as low as 2-volts
  • Soft start charging cycle
  • Energy efficient
  • Multi-voltage configurable
  • Reverse polarity protected
  • Compact & Wall-Mountable
  • Re-manufacturable
  • Troubleshooting & Customer Care
  • 2-year industrial application warranty

Three-Phase Industrial Battery Chargers

Durable, dependable modular design for uninterrupted charging. Multi-voltage/multi-current configurable modules to service a wide range of lead-acid or lithium-ion batteries. These three-phase hardwired units are easy to service and repair, when necessary, with little to no downtime. High energy efficiency-rated, at over 90%. Need more information? Contact sales.

GREEN6

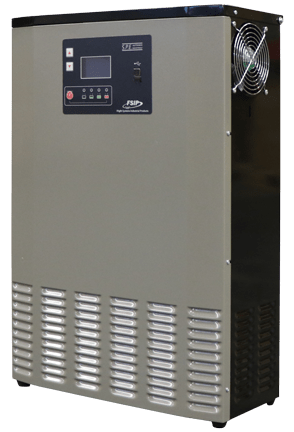

GREEN6 Single-Phase Industrial Battery Charger Technical Drawing GREEN6 Single-Phase Industrial Battery Charger Product Shot
Download Spec Sheet
Model DC Output Voltage DC Output Current Flooded 8-Hour AH Range (C6) Max AC Input Current Input Voltage
GREEN6 DIMs: 13.7” x 8.7” x 26.2” Wt.: 78 lbs.
24-GREEN6220-24150 24V 150A 280AH-1650AH 35A 208-240VAC, Three-phase
24-GREEN6220-36150 36V 150A 280AH-1650AH 30A 208-240VAC, Three-phase
24-GREEN6220-48150 48V 150A 280AH-1650AH 30A 208-240VAC, Three-phase
24-GREEN6220-80100 80V 100A 170AH-1100AH 40A 208-240VAC, Three-phase
24-GREEN6-24150 24V 150A 280AH-1650AH 10A 480VAC, Three-phase
24-GREEN6-36150 36V 150A 280AH-1650AH 15A 480VAC, Three-phase
24-GREEN6-48150 48V 150A 280AH-1650AH 20A 480VAC, Three-phase
24-GREEN6-80100 80V 100A 170AH-1100AH 20A 480VAC, Three-phase

GREEN8

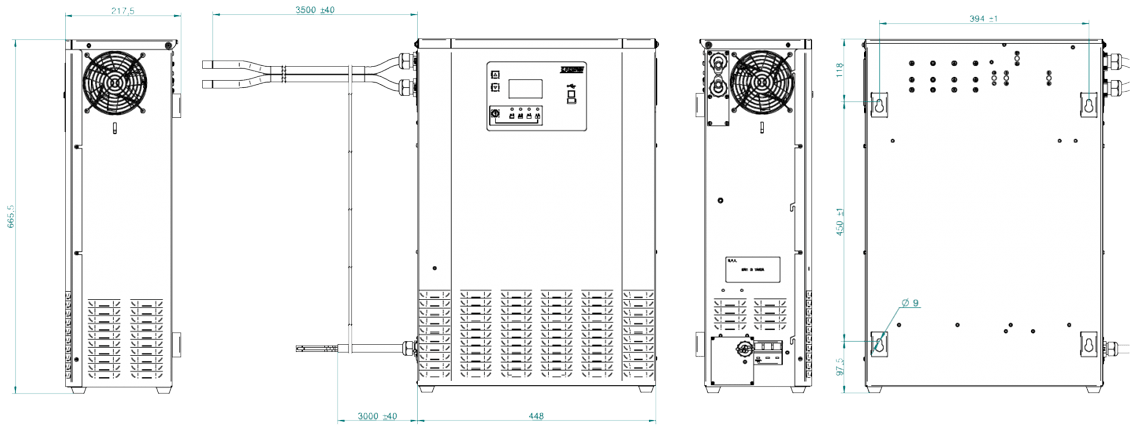

GREEN8 Single-Phase Industrial Battery Charger Technical Drawing GREEN8 Single-Phase Industrial Battery Charger Product Shot
Download Spec Sheet
Model DC Output Voltage DC Output Current Flooded 8-Hour AH Range (C6) Flooded 4-Hour AH Range (C6) Max AC Input Current Input Voltage
GREEN8 DIMs: 19.5” x 8.6” x 26.2” Wt.: 95.5 lbs.
24-GREEN8220-24200 24V 200A 310AH-1900AH 310AH-850AH 50A 220VAC, Three-phase
24-GREEN8220-36200 36V 200A 310AH-1900AH 310AH-850AH 50A 220VAC, Three-phase
24-GREEN8220-48200 48V 200A 310AH-1900AH 310AH-850AH 50A 220VAC, Three-phase
24-GREEN8480-24200 24V 200A 310AH-1900AH 310AH-850AH 25A 480VAC, Three-phase
24-GREEN8480-36200 36V 200A 310AH-1900AH 310AH-850AH 25A 480VAC, Three-phase
24-GREEN8480-48200 48V 200A 310AH-1900AH 310AH-850AH 25A 480VAC, Three-phase

GREENX

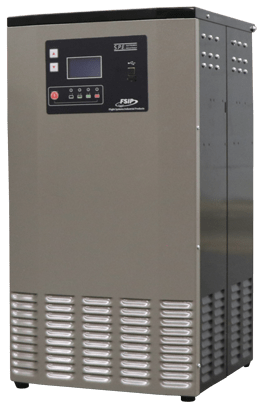

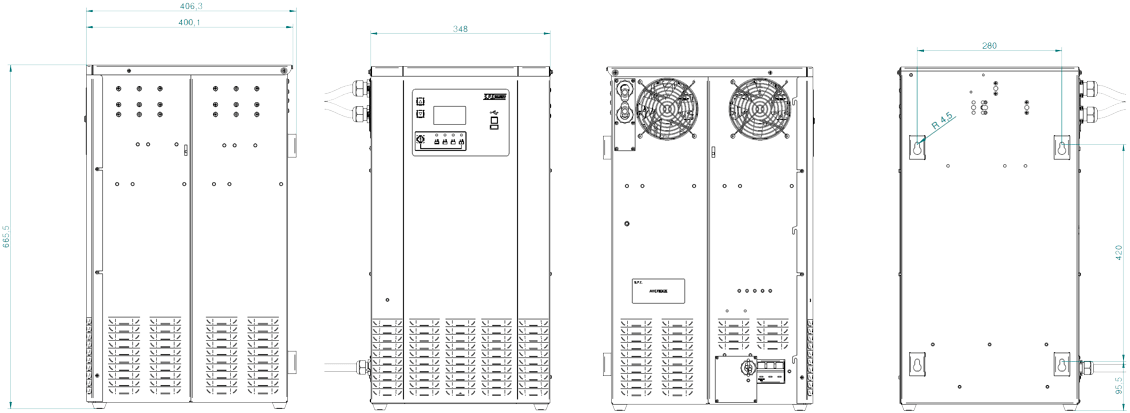

GREENX Single-Phase Industrial Battery Charger Technical Drawing GREENX Single-Phase Industrial Battery Charger Product Shot
Download Spec Sheet
Model DC Output Voltage DC Output Current Flooded 8-Hour AH Range (C6) Flooded 4-Hour AH Range (C6) Max AC Input Current Input Voltage
GREENX DIMs: 13.7” x 15.9” x 26.2” Wt.: 135 lbs.
24-GREENX480-24300 24V 300A 310AH-2500AH 310AH-1400AH 35A 480VAC, Three-phase
24-GREENX480-36300 36V 300A 310AH-2500AH 310AH-1400AH 35A 480VAC, Three-phase
24-GREENX480-48300 48V 300A 310AH-2500AH 310AH-1400AH 35A 480VAC, Three-phase

Single-Phase Industrial Battery Chargers

GREEN2 & GREEN4

For sweeper-scrubbers, pallet jacks, rental fleets, and more.

Three-Phase Industrial Battery Chargers

GREEN6, GREEN8 & GREENX

Modular design with multi-voltage/multi-current configurable modules.
