Load Banks & Dischargers
Load banks and dischargers are used to troubleshoot and manage battery-powered equipment expenses by accurately tracking your battery’s remaining capacity. Battery health is measured in total discharge time, obtained by discharging a fully charged battery. They can also be used to drain batteries for safe recycling!
Maintain Stable Current
SMART Discharging
Constant controlled current automatically holds the current stable as the voltage falls throughout the discharging process.

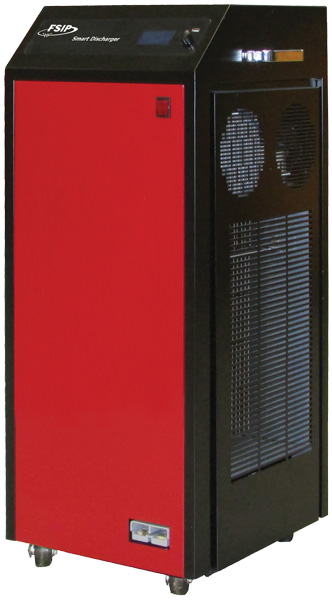

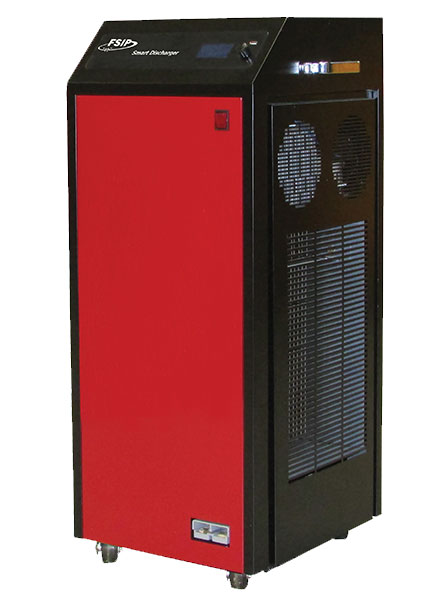

SMART Discharger
The Smart Discharger is designed to automatically provide a graphical analysis of a battery’s remaining capacity. This unit discharges batteries at a controlled current of up to 200 amps on 12–96 volt battery packs. Pair the Smart Discharger with the Battery Monitoring System for a simplified setup process and automatic transfer of discharge data to your PC.
| Smart Discharger DIMs: 16” x 16” x 37” Wt.: 143 lbs. | |||||
| Model | Input Voltage | Max Input Current | Output Voltage | Load Capacity | Max Amp Hour Rating |
|---|---|---|---|---|---|
| 93-D1007-200 | 120 VAC, Single-Phase | 115 VAC 15 A | 10–110 VDC | 0–200 A | 1200 Ah C6 |
Safeguarding Our Environment
Lithium Battery Disposal
With the increasing prominence of lithium batteries in the industry, it's crucial for us to dispose of them safely and responsibly to protect our environment. For expert guidance on proper disposal and reducing our environmental footprint, reaching out to a specialist in lithium battery recycling and disposal is key.

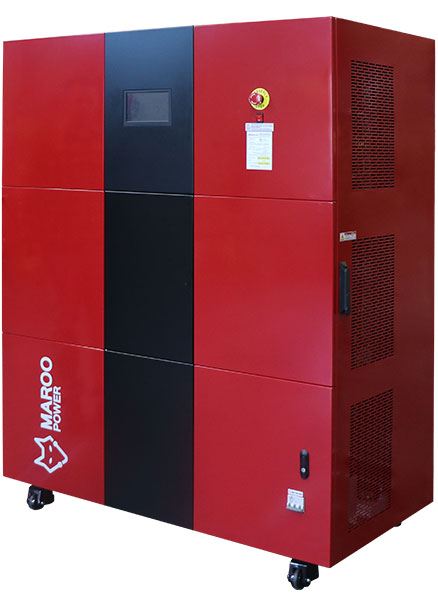

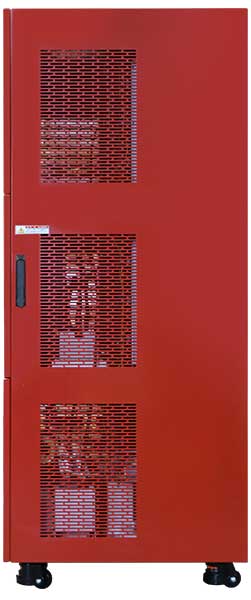

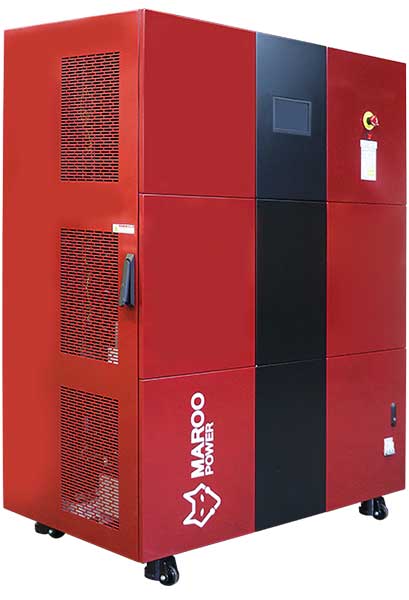

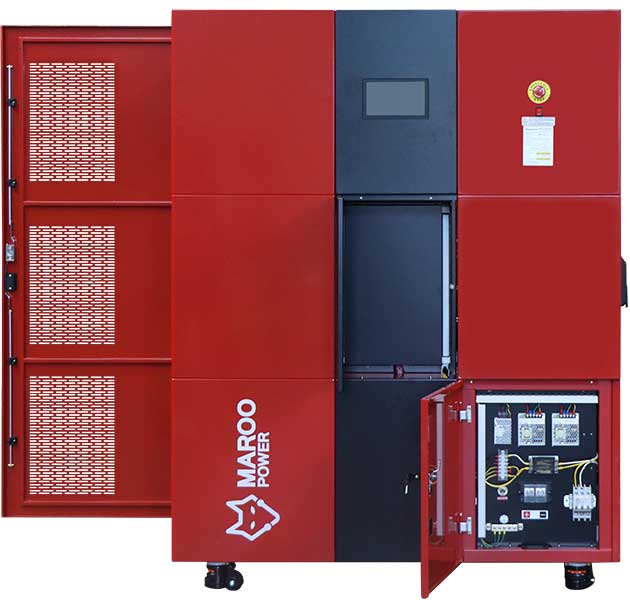

Battery Terminator
The Battery Terminator is a quick, safe, automatic constant current discharger. The Terminator can drain lithium batteries down to zero volts (or -2 V) to prepare them for safe recycling using a prolonged short-circuit safety method. The unit is temperature controlled and will provide detailed reports for capacity testing.
| Battery Terminator DIMs: 33.5” x 25.7” x 69.7” Wt.: 440 lbs. | ||
| Model | Discharge Voltage | Discharge Current |
|---|---|---|
| 93-TERMINATOR-S1000100 | 1,000 V — -2 V | 100 A |
| 93-TERMINATOR-S500100 | 500 V — -2 V | 100 A |
| 93-TERMINATOR-M100015 | 1,000 V — 0 V | 15 A* |

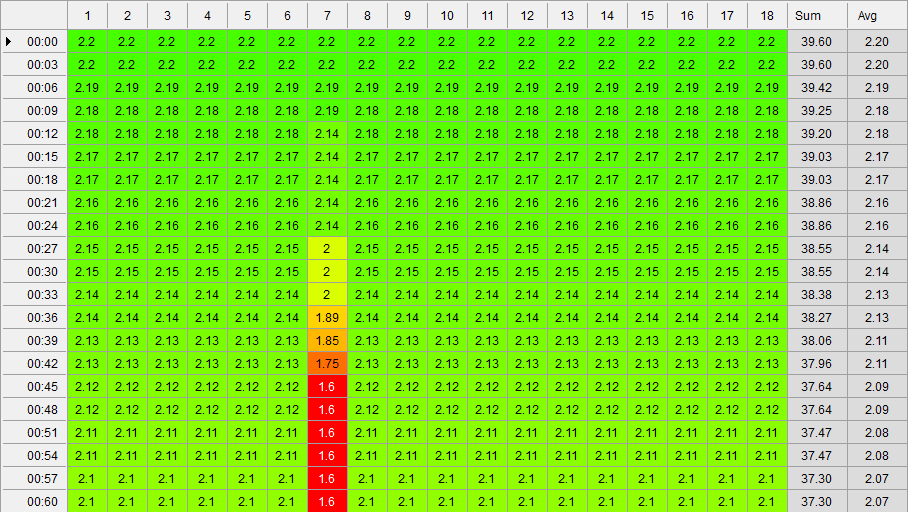

Tracking Individual Cell Health
Optimize Battery Performance
The Battery Monitoring System (BMS) serves as a crucial component in optimizing battery performance by meticulously gathering and analyzing data on the health of each individual cell within the battery.

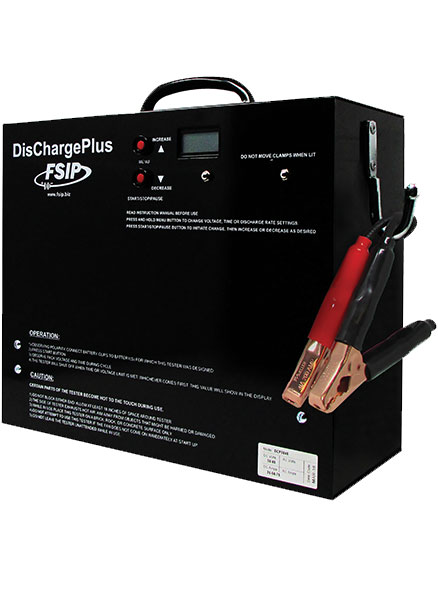

DisChargePlus
FSIP’s exclusive DisChargePlus is designed to measure the remaining capacity for 36 or 48 volt lead-acid or lithium-ion battery sets. The discharge rate, time, and shut-off voltage are programmable. This discharger does not require AC power and can be used in conjunction with the BMS.
| Smart Discharger DIMs: 15.5” x 6.24” x 14” Wt.: 16.7 lbs. | ||
| Model | Output Voltage | Load Capacity |
|---|---|---|
| 94-DCP3648 | 36–48 V | 25 A, 56 A, 75 A |
